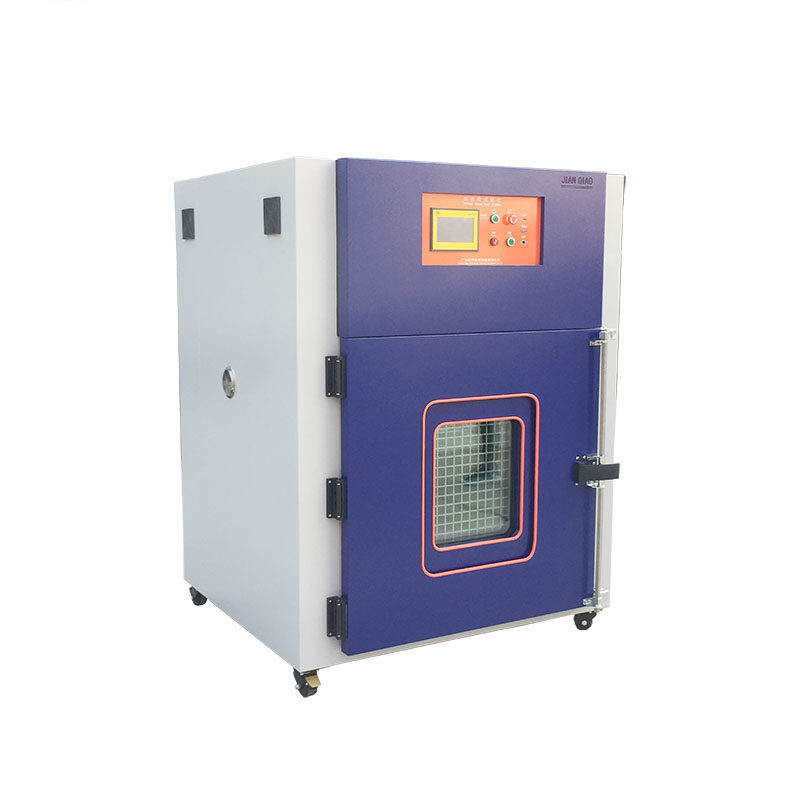

+86-13829135122The Thermal Abuse Tester
The heat abuse test chamber is based on the requirements of the test standards such as UL1642 and IEC62133. After the battery is fully charged, the battery is placed in the test chamber. The test chamber is heated at a temperature rise rate of (5 ± 2) ° C / min, and the temperature is constant after the temperature in the chamber reaches 130 ° C ± 2 ° C for 30 min. The battery should not ignite and not explode.
Feature
l This machine adopts PLC touch screen control system, which is convenient and intuitive, fully automatic constant temperature and quick temperature compensation function.
l Over temperature protection, overload automatic power off system
l New high temperature long axis motor
l 4 casters on the bottom for easy movement and fixing
l Circulatory system: forced horizontal air circulation
l Heating system: PID+S.S.R.
l Timing function: When the temperature reaches the set time, the power failure alarm indication
l The test area of the test box is a separate test area, the test area size is W600xD500xH600 mm, and the test area box is made of stainless steel SUS304.
l The test chamber is provided with an exhaust system. The top of the cabinet is equipped with a blower to discharge the smoke from the test area.
l The front door of the test box is reinforced. The left side of the door is equipped with an exposed hinge. The right side is equipped with a strong door lock. The door is effectively sealed. The hinges and locks are made of standard equipment for strengthening equipment.
l 4 casters on the bottom for easy movement and fixation.
Thermal Abuse Tester | |
Model | JQ-8130 |
Temperature range | Adjustable control at RT (or ambient temperature) ~ 160 °C |
Temperature accuracy | ±0.5℃ |
Temperature deviation | ±2℃(no load) |
Heating rate | （RT～150℃（Linear 5℃/min） |
Control display mode | PLC (original imported Taiwan Delta 7 inch) + remote control |
Inner Chamber size | W600 X D500 X H600 mm (customize) |
Outer Chamber size | W940XD780XH1620 mm |
Inner chamber material | Stainless steel |
Outer camber material | Standard 1.2mm electrolytic plate painting |
Visual window | 390 X 360mm(20mm thick tempered explosion-proof glass) |
installed with stainless steel mesh explosion-proof | |
Insulation material | Imported high-density glass rock wool, good heat insulation, maximum temperature insulation, tight material is high temperature resistant silica gel, can withstand more than 300 degrees for a long time |
Test port | There is a test hole matching hole cover with a diameter of 50MM on each of the left and right sides of the chamber |
Power | 220V,50Hz |
Safety device | First over temperature alarm, MCCB overload protection, etc. |
USB Interface | With USB interface, test data can be exported |
Power supply | 4kw |
Accessories | Explosion-proof pressure relief device, smoke exhaust device, explosion-proof lighting device, electronic door lock system, Emergency-stop switch |
Product usage
This equipment is suitable for all kinds of electrical and electronic products and other products, parts and materials for high and low temperature constant and various temperature shock and temperature change reliability
Standards compliant
3.1.GB 31241-2014 "Lithium-ion batteries and battery packs for portable electronic products - Safety requirements"
standard requirement:
The battery should not ignite or explode
After the battery is fully charged according to the specified test method, the battery is placed in the test chamber. The test chamber is heated at a temperature rise rate of (5 ± 2) ° C / min. When the temperature inside the chamber reaches 130 ° C ± 2 ° C, the temperature is constant and lasts for 30 min.
Receiving criteria:
The battery should not ignite or explode
Thermal Abuse Tester | |
Model | JQ-8130 |
Temperature range | Adjustable control at RT (or ambient temperature) ~ 160 °C |
Temperature accuracy | ±0.5℃ |
Temperature deviation | ±2℃(no load) |
Heating rate | （RT～150℃（Linear 5℃/min） |
Control display mode | PLC (original imported Taiwan Delta 7 inch) + remote control |
Inner Chamber size | W600 X D500 X H600 mm (customize) |
Outer Chamber size | W940XD780XH1620 mm |
Inner chamber material | Stainless steel |
Outer camber material | Standard 1.2mm electrolytic plate painting |
Visual window | 390 X 360mm(20mm thick tempered explosion-proof glass) |
installed with stainless steel mesh explosion-proof | |
Insulation material | Imported high-density glass rock wool, good heat insulation, maximum temperature insulation, tight material is high temperature resistant silica gel, can withstand more than 300 degrees for a long time |
Test port | There is a test hole matching hole cover with a diameter of 50MM on each of the left and right sides of the chamber |
Power | 220V,50Hz |
Safety device | First over temperature alarm, MCCB overload protection, etc. |
USB Interface | With USB interface, test data can be exported |
Power supply | 4kw |
Accessories | Explosion-proof pressure relief device, smoke exhaust device, explosion-proof lighting device, electronic door lock system, Emergency-stop switch |
