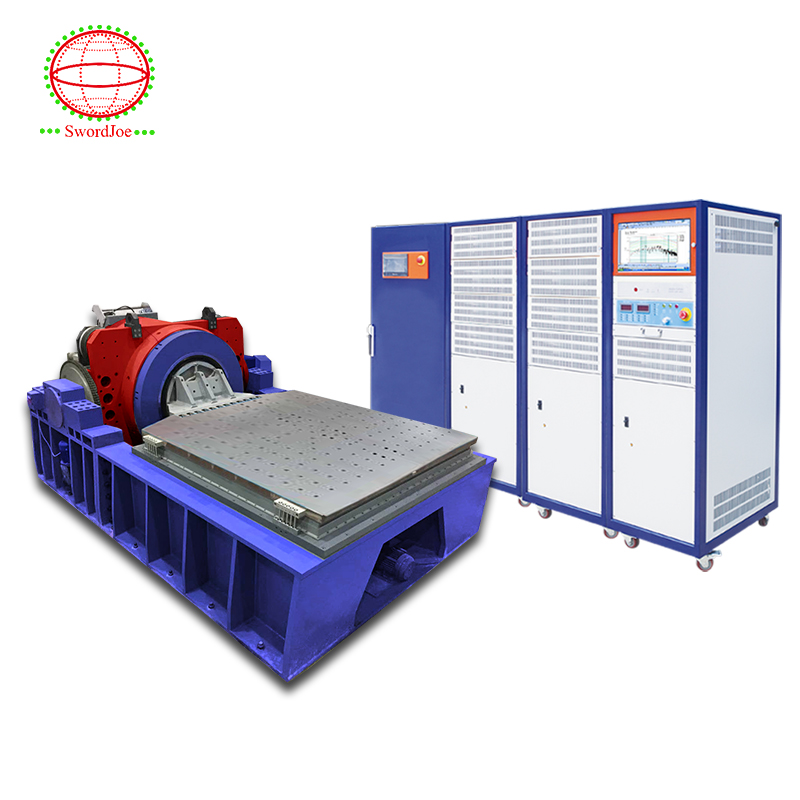

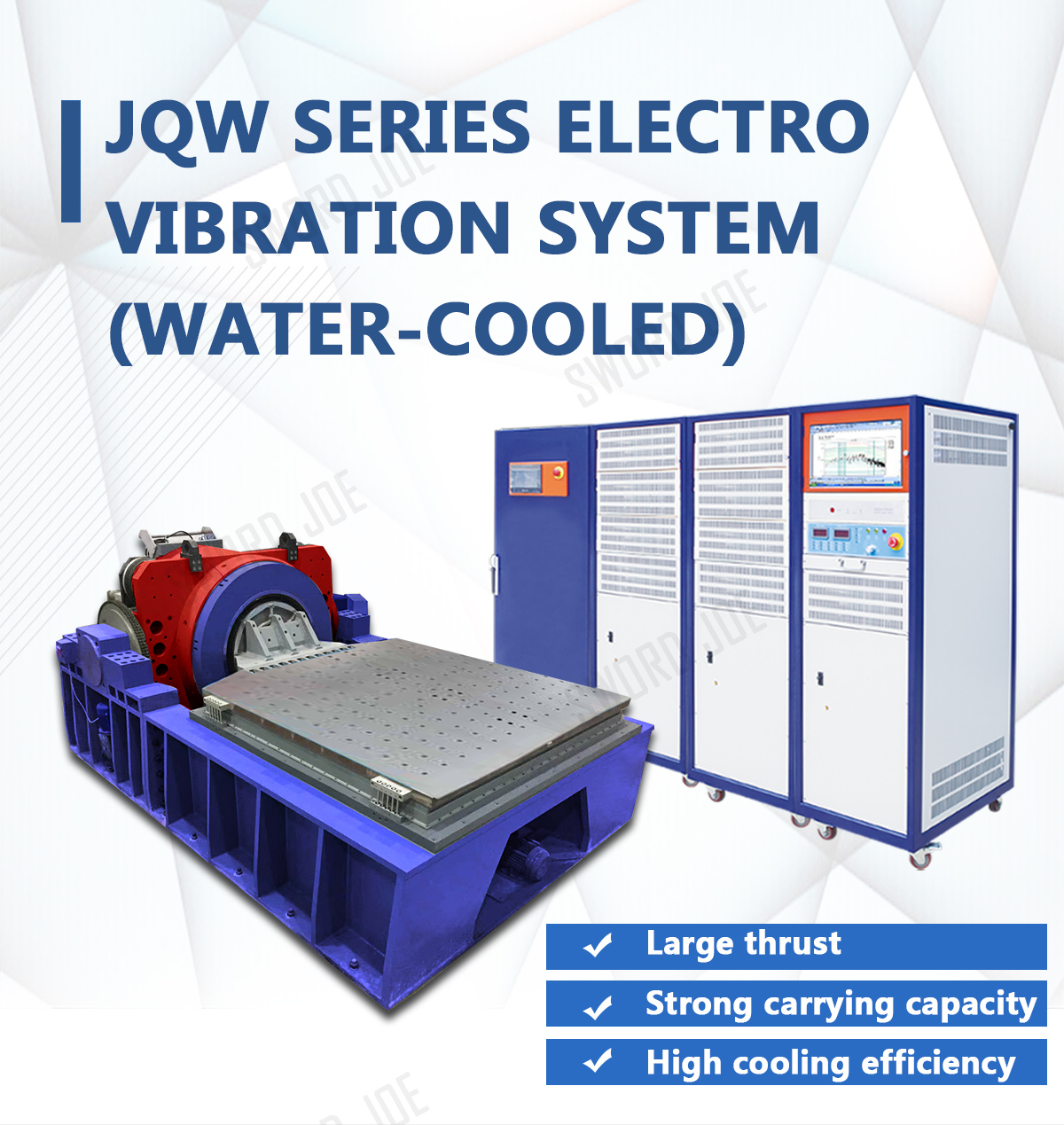

The water-cooled electric vibration system has large thrust, strong carrying capacity and high cooling efficiency. Triaxial sinusoidal vibration tests, wideband random vibration tests, and classical (half sine, trapezoidal, posterior peak) pulse and shock response spectrum tests can be performed separately. The climate chamber can be configured to complete a multi-environment comprehensive test. There are currently several models of shakers available in this range. The excitation force ranges from 50kN to 400kN and the maximum load ranges from 800kg to 6000kg.

Performance characteristics

1 Random and sinusoidal excitation force: 1:1
2 Twice the sinusoidal impact (optional three times)
3 Displacement peak-to-peak: 51mm, 76mm or 100mm
4 The moving coil is light in weight and the work surface is large.
5 The air spring of the trunnion has good vibration isolation effect.
6 The air spring of the central room has strong carrying capacity and good low frequency performance.
7 Equipped with automatic centering system, the control moving coil is always in equilibrium when moving.
8 Dual magnetic circuit design, low magnetic flux leakage, uniform magnetic field.

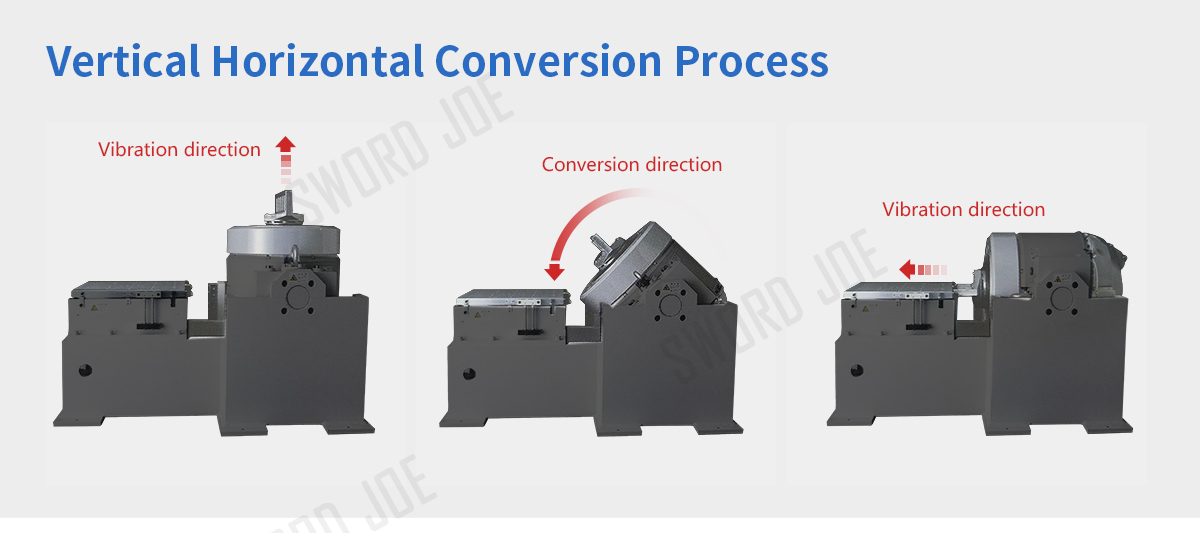

9 Configuration of electric steering device when switching between horizontal and vertical.

Product Features

● High-strength moving coil skeleton structure design to improve the dynamic structure strength of the moving coil
● New design of cooling short-circuit ring to improve cooling efficiency
● The moving coil winding is wound by the latest insulation reinforcing material
● Secondary-circulating water cooling system enables the heat-generating components to operaate reliably for long time.
● Parallel waterway design, improve cooling efficiency, reduce cooling water temperature , and reduce environmental temperature requirements
● Three-parts cooling structure ensures that all heat-generating components are sufficient cooled.
● Linear bearing air spring trunnion vibration isolation, with excellent vibration isolation guiding ability.
● Upper and lower roller guiding structurecan be guided by hydro-static bearing, stronger anti-overturning moment.

System performance

◎ Excellent random performance, 3 sigma rated peak current conforms to ISO standard

◎ Moving coil diameter range from 450 mm (17.7 inches) to 870 mm ( 34 inches)

◎ Compatible with any vibration controller

◎ System operation is convenient

◎ Test frequency up to 5,000Hz

Vibration shaker body

1 Air spring load support
2 Sturdy trunnion design with bearing guide
3 Built-in airbag or rubber vibration isolation device to reduce ground dynamic vibration
4 High-strength frameless moving coil design with random high acceleration performance
5 Rocker arm suspension system and roller guide, with high anti-offset torque
6 Shaker are cooled by high-efficiency, low-noise fans to ensure long-term continuous operation
7 Optimized body shape design, easy to combine with climate chamber
8 Optional integrated, independent horizontal slide table

Power amplifier

1 High performance PA-50 series power amplifier
2 Power amplifier modular design
3 System boot self-test function
4 Single power module up to 12kVA
5 High modulation switching frequency
6 High conversion efficiency (greater than 92%)

7 High signal to noise ratio
8 Independent power module operation indicator
9 Logic unit with CPU control
10 LCD display system operation data and status
11 High current components with fully enclosed fuse protection design
12 Complete system interlock protection device
13  European "TUV Rheinl and" CE certification

Ancillary equipment

◎ Dynamic and static moving coil alignment system
◎ Taiwan worm gear worm turning system

◎ Comprehensive environmental test chamber countertop heat insulation device
◎ Power amplifier remote control panel with full logic control features

The shaking table execution standard is as follows

● GB/T 2423.10-1995 Environmental testing of electrical and electronic products - Part 2: Test methods Test Fc and guide: Vibration (sinusoidal)

● GB/T 2423.11-1997 Environmental testing of electrical and electronic products - Part 2: Test methods Test Fd: Broadband random vibration - General requirements

● GB/T 2423.12-1997 Environmental testing of electrical and electronic products - Part 2: Test methods Test Fda: Broadband random vibration - High reproducibility

● GB/T 2423.13-1997 Environmental testing of electrical and electronic products - Part 2: Test method Test Fdb: Reproducibility in broadband random vibration

● GB/T 2423.14-1997 Environmental testing of electric and electronic products - Part 2: Test method Test Fdc: Low-band random vibration low reproducibility

● GB/T 2423.35-1986 Basic environmental test procedures for electric and electronic products Test Z/AFc: Low temperature / vibration (sinusoidal) comprehensive test method for heat and non-heat test samples

● GB/T 2423.36-1986 Basic environmental test procedures for electric and electronic products Test Z/BFc: High temperature / vibration (sinusoidal) comprehensive test method for heat and non-heating samples

● GB/T 2423.48-1997 Environmental testing of electrical and electronic products - Part 2: Test methods Test Ff: Vibration-time-history method

● GB/T 2423.49-1997 Environmental testing of electric and electronic products - Part 2: Test method Tests Fe: Vibration - sinusoidal beat method

● GB/T 2424.22-86 basic environmental test procedures for electrical and electronic products Temperature (low temperature, high temperature) and vibration (zhenxuan) comprehensive test guidelines

● GB/T 2424.24-1995 Basic environmental test procedures for electrical and electronic products Temperature (low temperature, high temperature) / low pressure / vibration (zhenxuan) comprehensive test guidelines

APPLICATION

The equipment is used to detect early faults, simulate actual working condition assessment and structural strength test. The product has a wide range of applications, wide application range, and remarkable and reliable test results.
